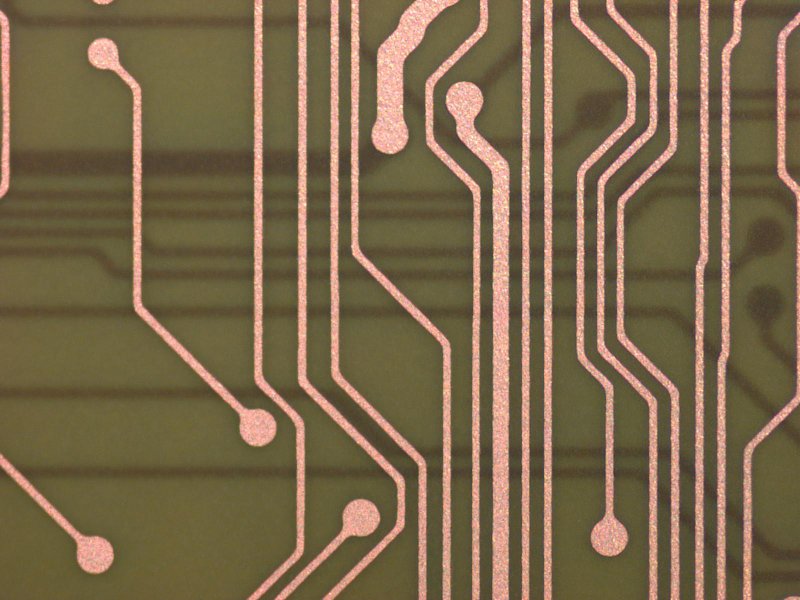

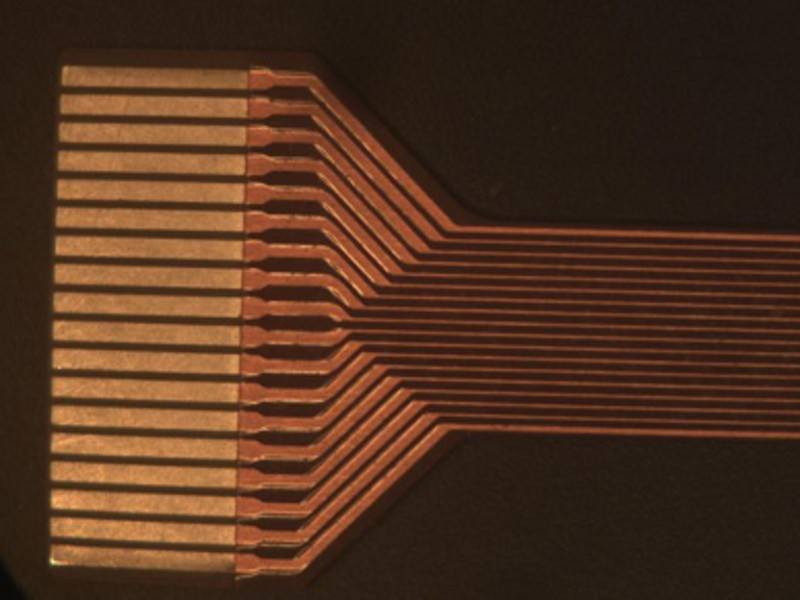

FINE LINE FLEX CIRCUITS
HTI Circuit Fabrication Overview
Vertically integrated world leader in suspension circuits for hard disk drives for over 20 years
Technology: Proven, high volume, high yield, 12 micron line /space capability
High Capacity / Low Cost:
Subtractive circuit etching capacity > 100K panels per month
Additive circuit capacity > 30,000 meters per month
HTI cost effectively supplies > 10 million suspensions per week to customers globally
Manufacturing Capabilities
Photochemical etching, plasma etching, plating, photoimageable solder mask
Laser Direct Imaging
Glass photo tool fabrication
Registration: +/-12 µm (0.48 mil)
Feature Inspection: 100% automated vision inspection

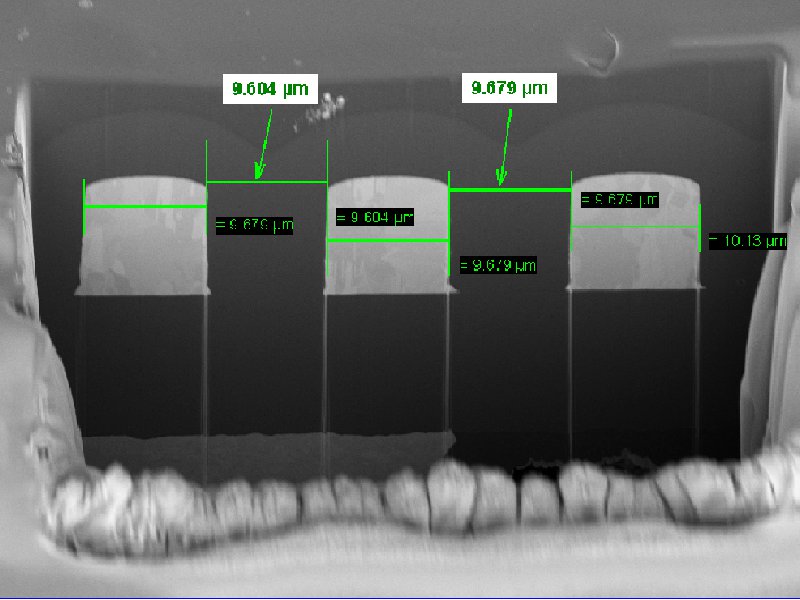

Line and Space capability: 12 µm
